Description:
Works great with Arduino line of products.
Available

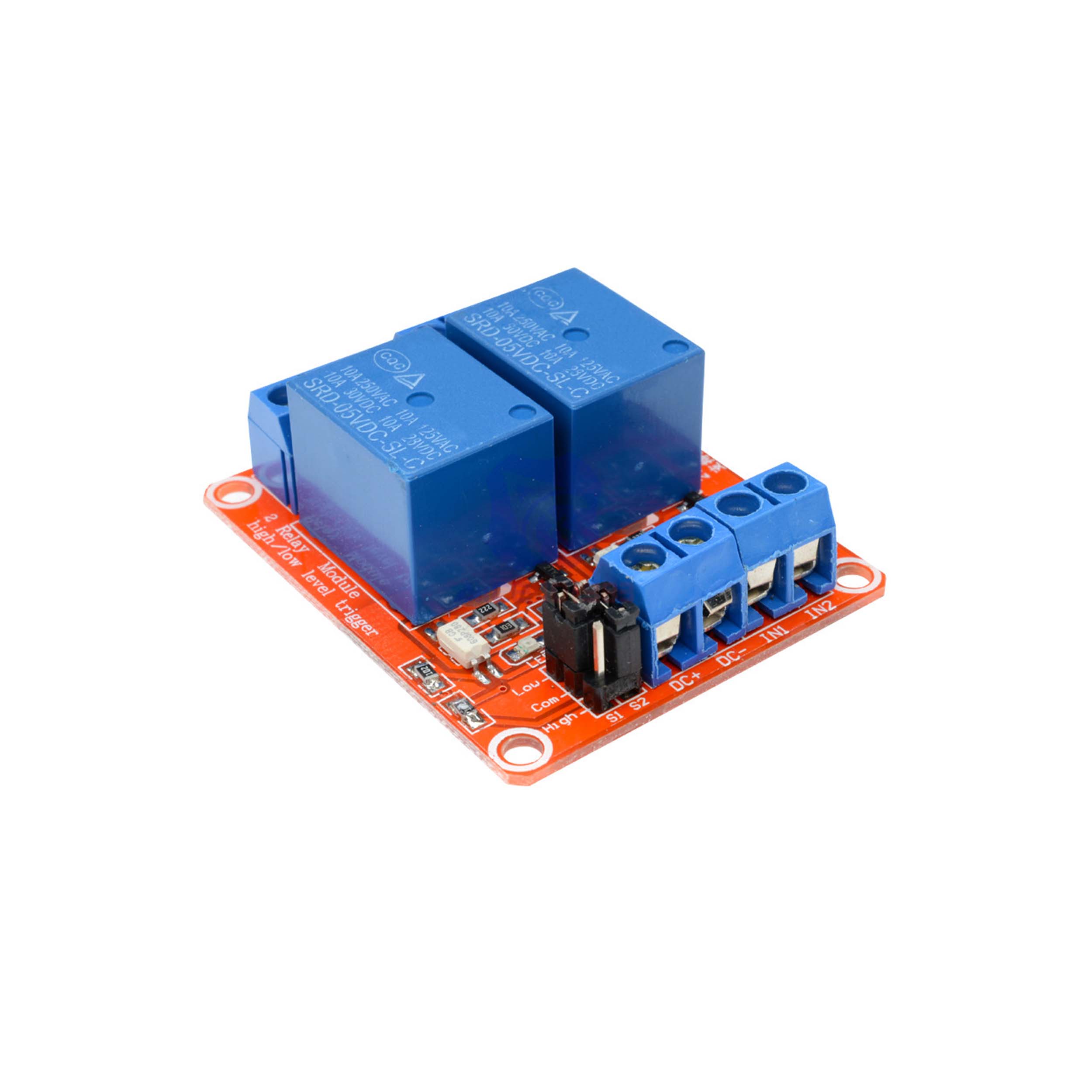

Relay module with photoelectric isolation.
The module can be triggered by a high or low signal by setting trigger jumper.
LED for relay power and activation
The module operating voltage is 5V
Normally open and normally closed terminals.
normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A
Module interface:
DC+: positive power supply (VCC)(5V)
DC-: negative power supply (GND)
IN/TRIGGER: The driving current should be more than 4m
